Massive Ordnance Air Blast

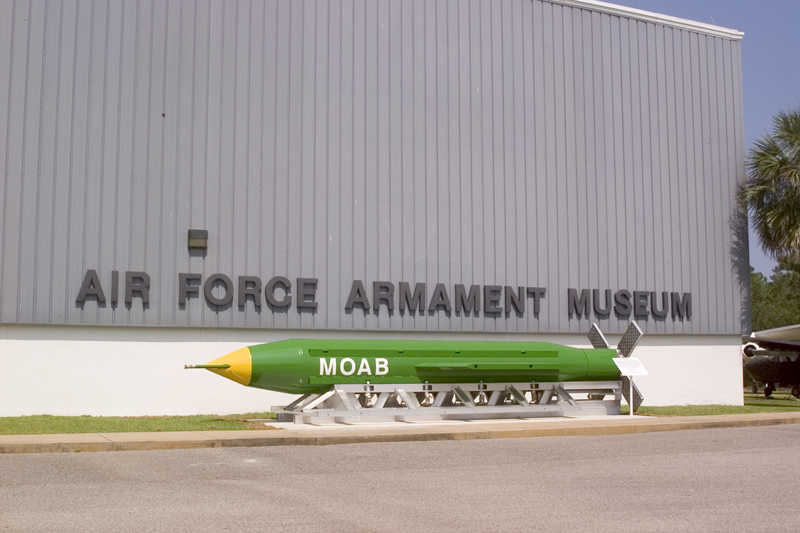

The GBU-43/B MOAB (Massive Ordnance Air Blast) bomb, nicknamed “Mother Of All Bombs” is a large, powerful and accurately delivered high explosive weapon. The MOAB is the largest-ever satellite-guided, air-delivered weapon in history. The 21,600 lb MOAB is an improved replacement for the unguided 15,000 lb BLU-82 Daisy Cutter used in Vietnam and Afghanistan. MOAB is a guided bomb which delivers 18,700 lb of H6 explosive using a BLU-120/B warhead. It uses the KMU-593/B GPS/INS guidance system and is stabilized by series of fixed wings and grid (lattice) fins. The unique lattice fins offer excellent aerodynamic properties. It is designed to be launched from a C-130 aircraft, the MOAB is strapped to a specially designed cradle. Upon extraction from the aircraft the cradle is separated from the MOAB. The MOAB then proceeds to the target. The MOAB was developed, tested, and fielded by the Air Force Research Laboratory Munitions Directorate, Air Armament Center, the 46th Operations Group, Detachment 1 at Eglin AFB, FL in concert with other agencies and contractors. Within in ten months, the MOAB program went from development contract award to delivery into the Operational Theater. 26 February 2003 – First flight of inert weapon 07 March 2003 – Guided flight test of inert weapon displays capability of the massive “smart” bomb 11 March 2003 – Live flight test of the MOAB 11 April 2003 – Delivery of first MOAB into Operational Theater 13 April 2017 – First operational use of the MOAB in Afghanistan.
Specifications
- Manufacturer Air Force Research Laboratory/Dynetics, Inc.
- Length 30 ft
- Width 5 ft with fins retracted / 10 ft with fins extended
- Diameter 40.5 in
- Weight 21,600 lbs
- Range Guided 3 nautical miles through a GPS system
- Launch Platform MC-130 Talon II or “Slick” C-130 Aircraft
- Armament 18,700 lbs of H6 Composition (1.35 times more powerful than TNT)
